Integrated EPS insulated pipe
Quick installation
Secure connection
High capacity low pressure drop
Application
Product description

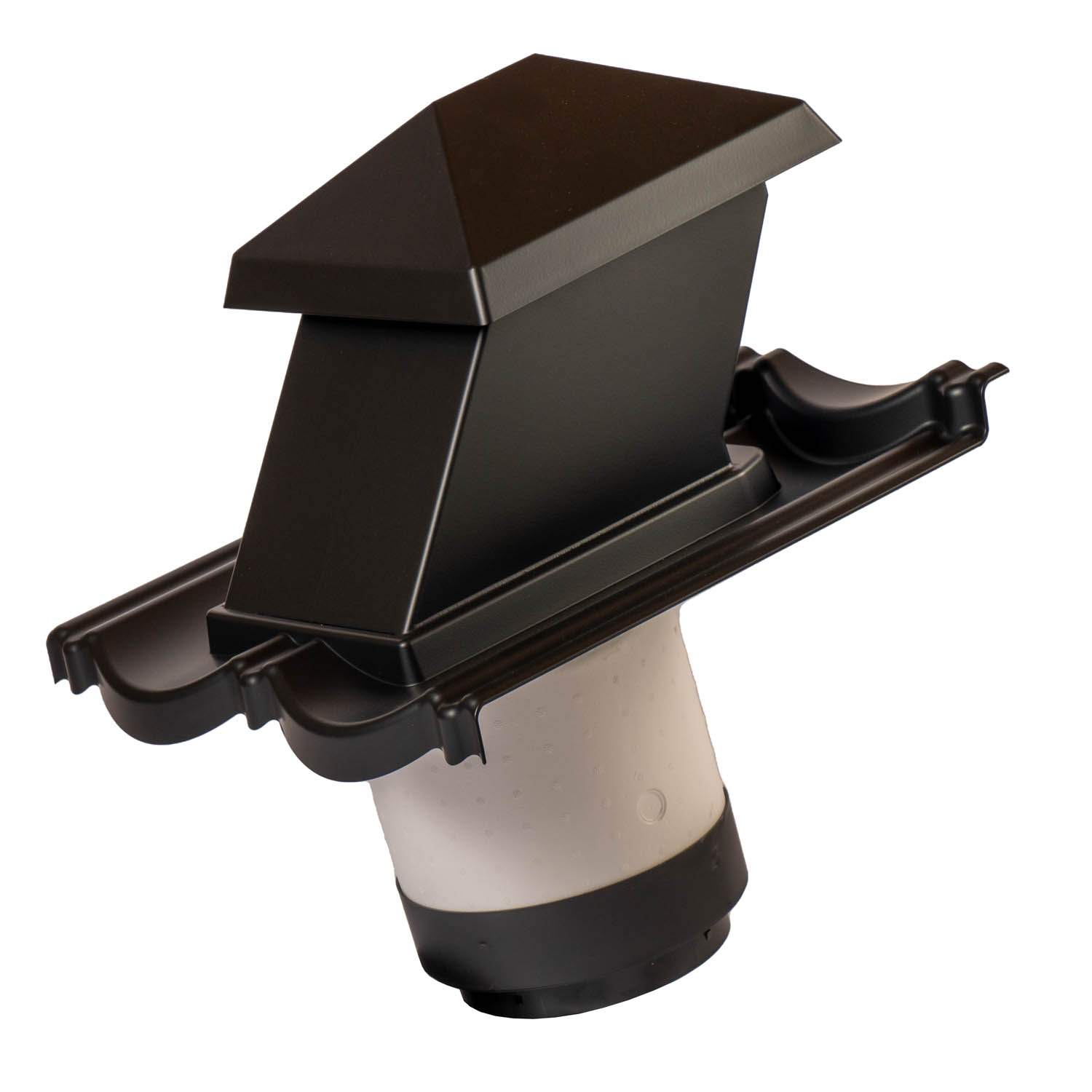

HV15x15 is a classic high multifunctional vent for both natural and mechanical ventilation for kitchen, bath and utility room. High capcity combined with low pressure loss makes it suitable for heat recovery systems. The multifunctionality allow for choosing the same vent for several purposes on the roof. The baseplate is manufactured separately to make it match 100% to each specific roof profile. A feature that makes i easier for the roofer to install the vent together with the rest of the roof and ensure a secure installation. The cover is designed to be in line with the roof surface at all times which minimizes the risk of return wind and noice. Warm humid air will condensate when cooled down on its way out through an uninsulated pipe. Therefore HV15x15 is supplied with an integrated pipe insulating the vent to the top for efficient outlet of humid air, and with an adapter Ø160 mm, for conecting pipes.
Facts:
For pitched roofs 15 – 45°
Ø160 mm connection
Can be manufactured for any profile
Materials:
Impact-resistant polystyrene (HIPS)
Expanded polystyrene (EPS)
Handling:
Keep in original packaging during transport
Do not wrap and expose to heavy load during transport
Remove plastic bag before placing in sunlight
100% match
KUNDETILPASSET Tagtilbehør matcher taget i farve, overflade og profil
Vores tagtilbehør kan produceres i 100% match, så det passer præcist til jeres tagprofiler, farver og overfladestruktur. Med 100% match bliver produktet en integreret del af taget, hvor æstetikken bevares, så slutkunden får en komplet og fuldendt løsning.
Når du ser 100% match mærket betyder det, at:
- Farven på produktet matches ud fra kundens eksisterende tagmateriale, så farvenuancen er 100% ens
- Overfladen skabes med pålægning af sand, granulat, autolak eller pift med andre farver, så det får et look, der matcher overfladen på det originale tagmateriale
- Profilet matches ved at lave en unik form til det enkelte tagprofil
